Yankee Dryers
The quality of the Smart Yankee Dryer fabricated by HERGEN is attested by the many cylinders supplied to the tissue market in Brazil and abroad.
These cylinders are fabricated in carbon steel and feature ribbed internal surface, characteristics that allow higher heat transfer and therefore higher drying efficiency.

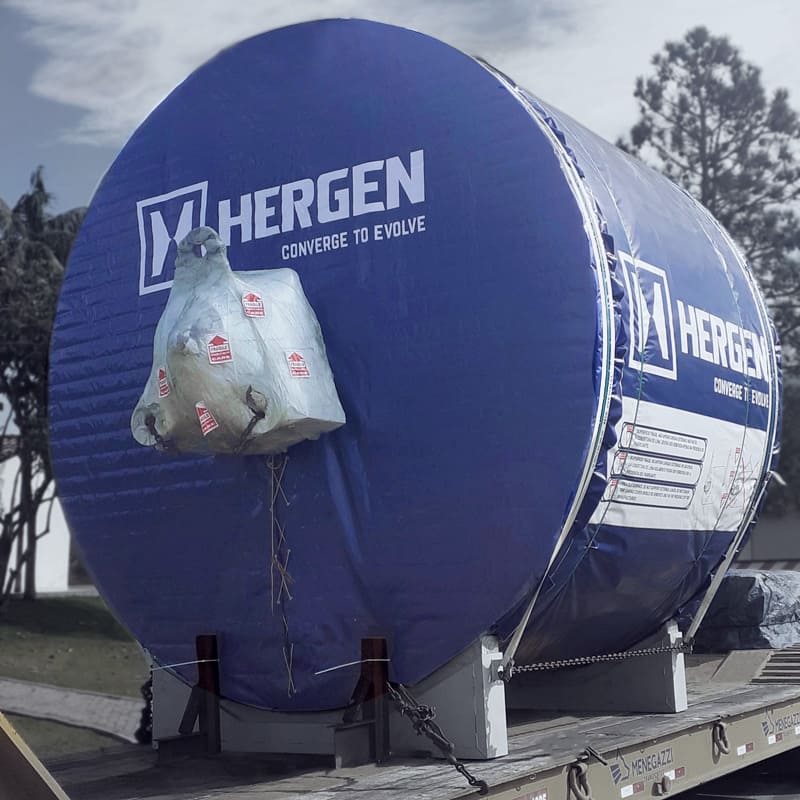

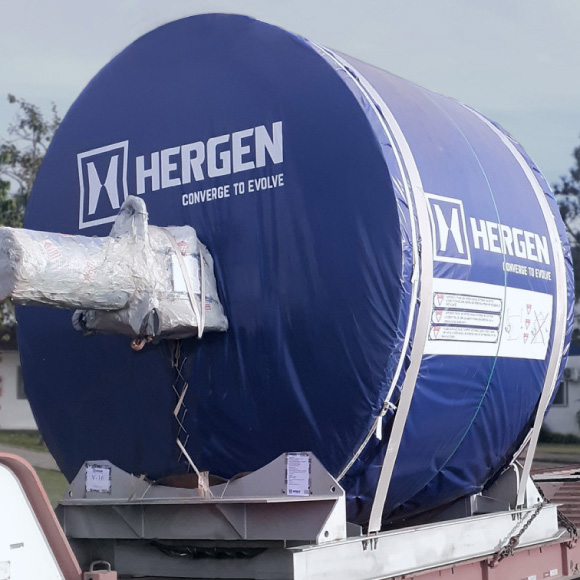

HERGEN has just delivered two more
Yankee Dryers:
Diameter: 3.660 mm (16’)
Face length: 2.750 mm
Fabricated in carbon steel
Welded heads
Ribbed internal surface
Soda straws for condensate removal
Working pressure: 10 bar
Diameter: 4.200 mm
Face length: 2.700 mm
Fabricated in carbon steel
Welded heads
Ribbed internal surface
Soda straws for condensate removal
Working pressure: 10 bar

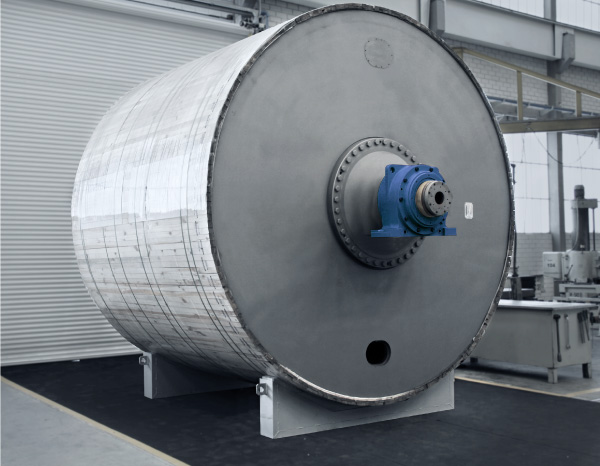

Yankee Dryers
Our Yankee Dryers manufacturing line presents the capability to produce cylinders with diameters up to 7.320 mm (24 ft) and face length up to 6.500 mm.
We are accredited to supply drying cylinders and pressure vessels that comply with the main international standards, such as ASME, PED and CUTR032 (Russia).
Therefore, we are now able to attend to any demand from this paper industry segment and definitely have established ourselves in the market as the major supplier of steel Yankee cylinders in Latin America.
Cylinders advantages
NO rupture risk due construction in carbon steel
Increased production: : HIGHER HEAT TRANSFER UP TO 35% AS COMPARED WITH CAST IRON CYLINDERS resulting in higher paper evaporation ratio
Innovative condensate extraction system
Higher reliability with no risk inherent to the casting process, such as porosities or discontinuities
Two construction options for Head Covers: mounted with cap-screw or welded to the cylinder shell
Metal surface with high hardness resulting in better creping quality
Excellent temperature profile
